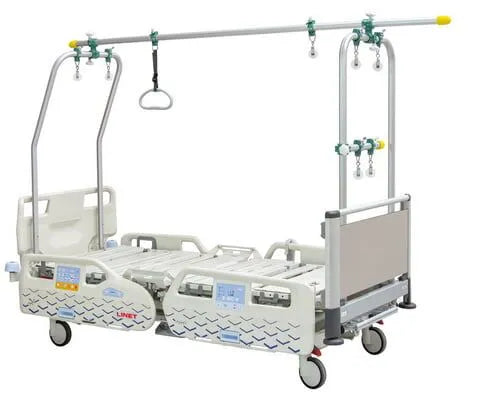

Complete T74 Assembly for Linet Essenza 300 Bed S0002790 The frame is composed of: Head-end for Essenza 300 S0002789-90 (x1) – PRTT73-74 – 4655006194 Foot-end for Essenza 300 S0002790 (x1) – PRPT74 – 4655006219 Reinforced 240 cm octagonal bar (x1) – B240 – 4655000071   Double swiveling clamp (x2) – DMEP – 4655003398 40 cm fixed-clamp tube (x1) – T40E – 4655003067   Patient handle (x1) – P753 – 4655000948    Open pulley holder (x7) – PPO – 4655000617   Yellow protection cap (x3) – SP01 – 4635001304 All listed items can be purchased separately. These frames are made to order. Please confirm delivery time and prices when placing your order. Please click here to download the User Manual: T74 Linet Essenza 300 S0002790 • Manual ML

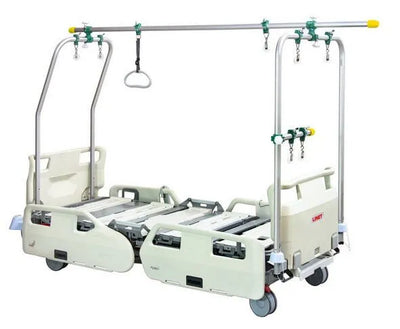

Complete T73 Assembly for Linet Essenza 300 Bed S0002789 The frame is composed of: Head-end  for Essenza 300 S0002789-90 (x1) – PRTT73 – 74 – 4655006194 Foot-end for Essenza 300 S0002789 (x1) – PRPT73 – 4655006201 Reinforced 240 cm octagonal bar (x1) – B240 – 4655000071 Double swiveling clamp (x2) – DMEP – 4655003398 40 cm fixed-clamp (x1) – T40E – 4655003067 Patient Grip handle (x1) – P753 – 4655000948 Open pulley holder (x7) – PPO – 4655000617 Yellow protection cap (x3) – SP01 – 4635001304 All listed items can be purchased separately. These frames are made to order. Please confirm delivery time and prices when placing your order. Please click here to download the User Manual: T73 Linet Essenza 300 S0002789 • Manual ML Check out our Traction Frame Range via our Youtube Channel here

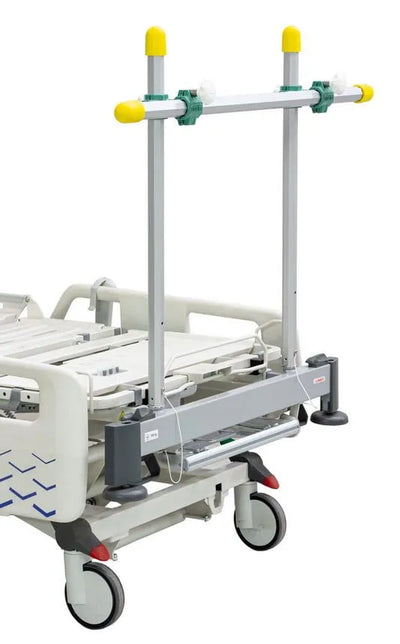

Partial Frame Assembly on Linet Essenza 300 Bed – S0002790 This partial assembly is specially designed to be installed at the foot of the bed. It allows for performing various types of short-term lower-limb traction (skin traction). The use of a positioning splint is not recommended. The assembly consists of: 80 cm vertical rod (x2) – FV Essenza 300 S0002790 – 4655006227 100 cm octagonal bar (x1) – B100 – 4566003687 Double fixed right-angle return clamp (x2) – DME – 4655003059 Protection cushion (x4) – SP01 – 4635001304 Traction Frame Accessories Catalogue These frames are made to order. Please confirm delivery time and prices when placing your order. Click here to download a user manual: MP Linet Essenza 300 Partial Assembly • User Manual - FR Check our our Traction Frame Range via our Youtube Channel here

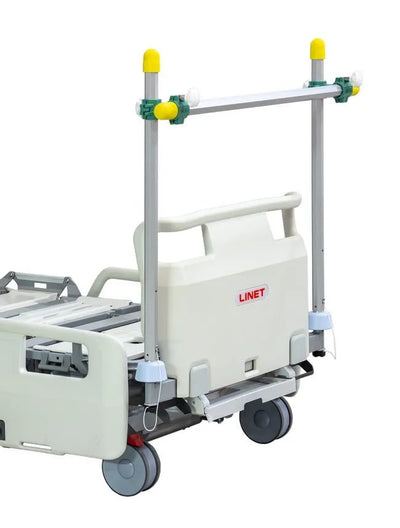

Partial Frame Assembly on Linet Essenza 300 Bed – S0002789 This partial assembly is specially designed to be installed at the foot of the bed. It allows for performing various types of short-term lower-limb traction (skin traction). The use of a positioning splint is not recommended. The assembly consists of: Vertical rod (x2) – FV Essenza 300 S0002789 – 4655006227 100 cm octagonal bar (x1) – B100 – 4566003687 Double fixed right-angle return clamp (x2) – DME – 4655003059 Protection cushion (x4) – SP01 – 4635001304 These frames are made to order. Please confirm delivery time and prices when placing your order. Click here to download a user manual: MP Linet Essenza 300 Partial Assembly • User Manual - FR Check our our Traction Frame Range via our YouTube Channel here

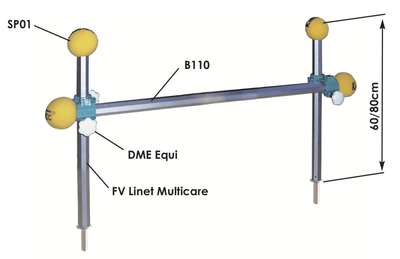

Partial or 'foot end' traction for the Linet Multicare beds. Two options available - upright of 80cm or 60cm. Kits include 2 x upright bars, 1 x cross bar, 2 x clamps, 4 x wall protection cushions. Accessories (not shown) include T40 Equi bar and open pulleys Partial Kit Codes: 4655004693 - Kit with 60cm upright bar 4655004718 - Kit with 80cm upright bars Check out our Traction Frame Range via Youtube Channel here

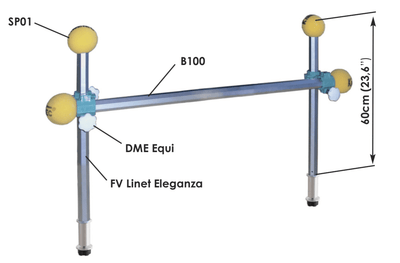

Partial or 'foot end' traction for the Linet Eleganza, Eleganza 3, Eleganza Smart and Eleganza 2 beds. Kit include 2 x upright bars, 1 x cross bar, 2 x clamps, 4 x wall protection cushions. Accessories (not shown) include T40 Equi bar and open pulleys. (See orthopaedic traction accessories section for more details). These frames are made to order. Please confirm delivery time and prices when ordering. Please click here to download a user manual: MP Linet Eleganza • User Manual - FR+EN Check our our Traction Frame Range via our Youtube Channel here

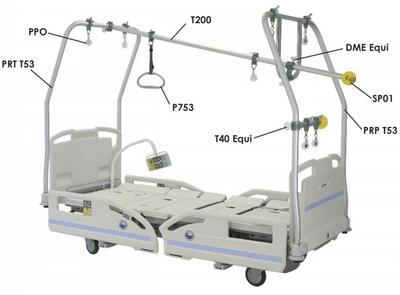

Complete traction frame for the Linet Eleganza 2 beds. Kit include 2 x 'porches', 1 x long clamp bar, 1 x clamps, 1 x T40 Equi bar, 7 x open pulleys, 1 x hand grip, 2 x wall protection cushions. All listed items are available to purchase separately. These frames are made to order. Please confirm delivery time and prices when ordering. Please click here to download the User Manual: T53 - Linet Eleganza 2 - User Manual. Dimensions 100x25x190 CM 30 KG Check out our Traction Frame Range via our Youtube Channel here

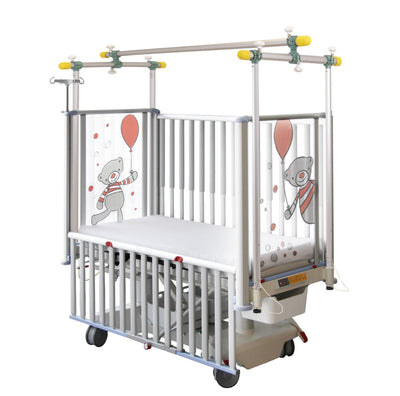

Complete traction frame for the Linet Tom 2 cot. The frame consists of: FVM T61 – Head or foot porch bar for Linet Tom 2 bed – 4655006540 (x4) B80 – Plain bar of 80cm – 4655000021 (x2) B170 – Reinforced plain bar of 170 cm– 4655004833 (x1) DMEP – Swivel double clamp – 4655003398 (x2) SP01 – Yellow protection cushion – 4635001304 (x6) *Optional devices: *TM70 – Centre clamp bar 2x35cm – 4655003158 *PPF – Closed pulley with clamp – 4655000625 *T13E – Fixed clamp bar of 13cm – 4655003075 *PPO – Open pulley with clamp – 4655000617 *SP01 – Yellow protection cushion – 4635001304 Accessory items shown T40 Equi bar, open pulleys and centre clamp bar are all available as accessories. All listed items are available to purchase separately. These frames are made to order. Please confirm delivery time and prices when ordering. Please click here to download the User Manual: T61V2 - Linet Tom 2 - User Manual EN Check out our Traction Frame Range via our YouTube Channel here

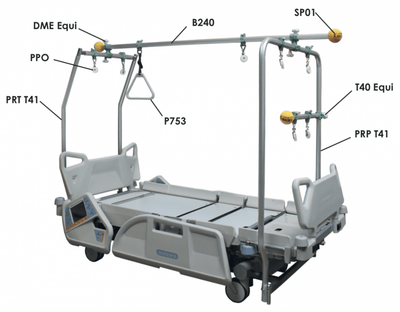

Complete traction frame for the Linet Multicare beds. Kit include 2 x 'porches', 1 x long plain bar, 2 x clamps, 1 x T40 Equi bar, 7 x open pulleys, 1 x hand grip, 2 x wall protection cushions. All listed items are available to purchase separately. These frames are made to order. Please confirm delivery time and prices when ordering. Please click here to download the User Manual: T41 Linet Multicare • Manual ML Dimensions 120x27x215 CM 30 KG Check out our Traction Frame Range via our Youtube Channel here
